Oriented Fence

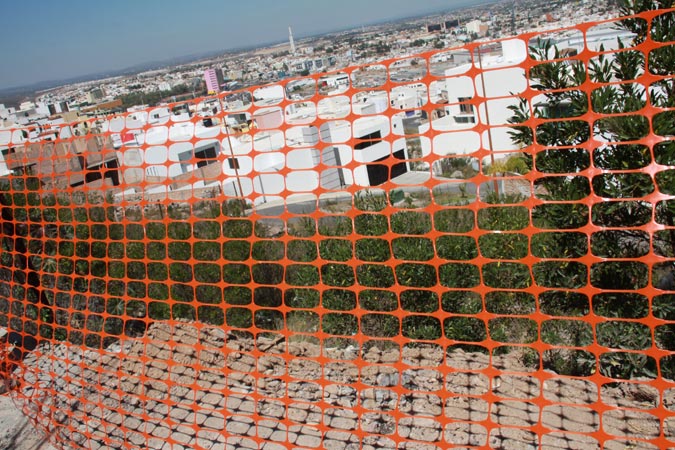

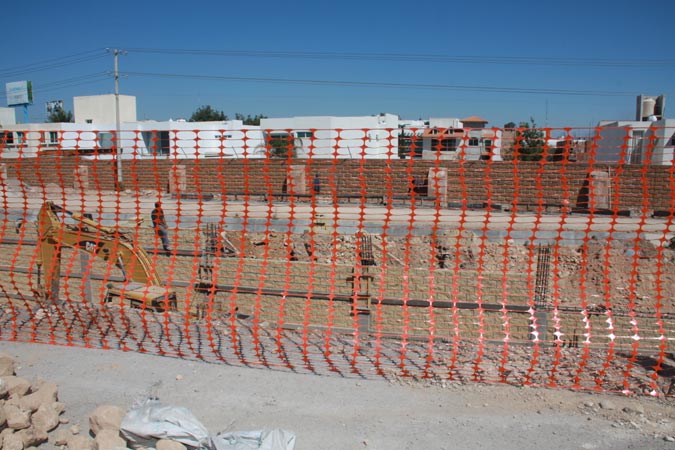

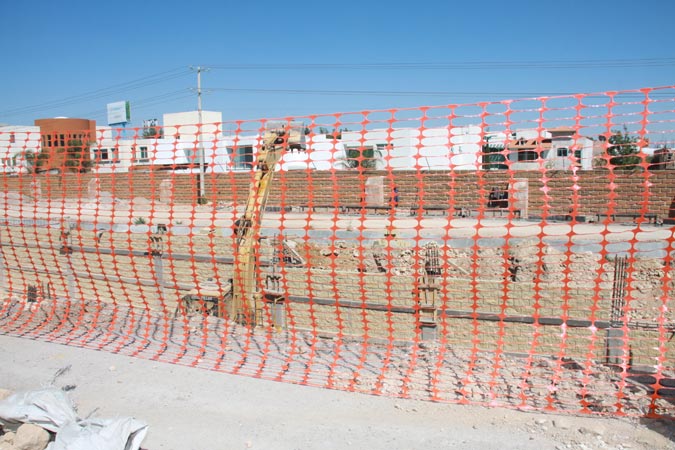

This product was developed to give the customer a strong but cost effective answer to crowd control. Some applications are: Construction warning barricade, sporting events, ski areas.
Colors: Orange, green and black.
| Sizes | Weight (LBS) |
4´x 50´ |
5 |
Resistent enhacement.
Specifications
| Property | Unit | Value | Range | |
| Standard height | cm (ft) | 122 (4.0) | ||
| Standard lengths | m (ft) | 30.5 (100) | 15.2 (50) | Standard |
| Weight per roll | kg (lb) | 3.63 (8) | 1.81 (4) | Standard |
| Tensile strenght (MD machine direction) |
kgf (lbf) | 17 (37.4) | Min. | |
| Tensile strenght (TD transversal direction) |
kgf (lbf) | 8.8 (19.36) | Min. | |

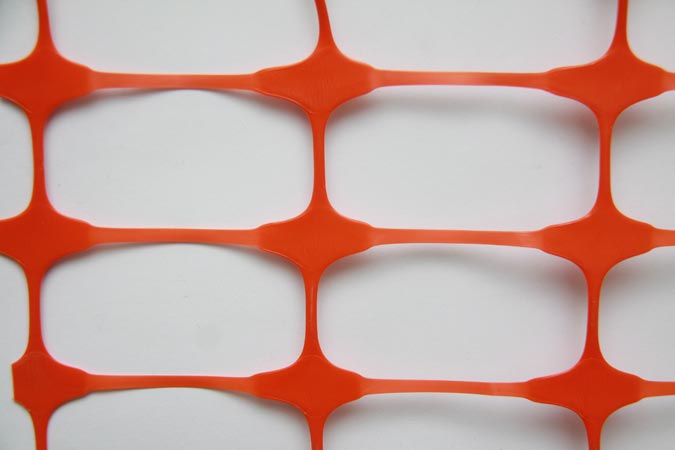

| Mesh opening | mm (in) | 110 X 30 (4.3 X 1.18) | ± 5% | |
(*) Units in English System
NA:Not Apply
Specifications
| Property | Unit | Value | Range | |
| Standard height | cm (ft) | 122 (4.0) | ||
| Standard lengths | m (ft) | 30.5 (100) | 15.2 (50) | Standard |
| Weight per roll | kg (lb) | 4.54 (10) | 2.27 (5) | Standard |
| Tensile strenght (MD machine direction) |
kgf (lbf) | 25 (55.0) |
Min. | |
| Tensile strenght (TD transversal direction) |
kgf (lbf) | 11 (24.0) | Min. | |
| Mesh opening | mm (in) | 100 X 45 (3.94 X 1.77) | ± 5% | |
(*) Units in English System
NA:Not Apply
