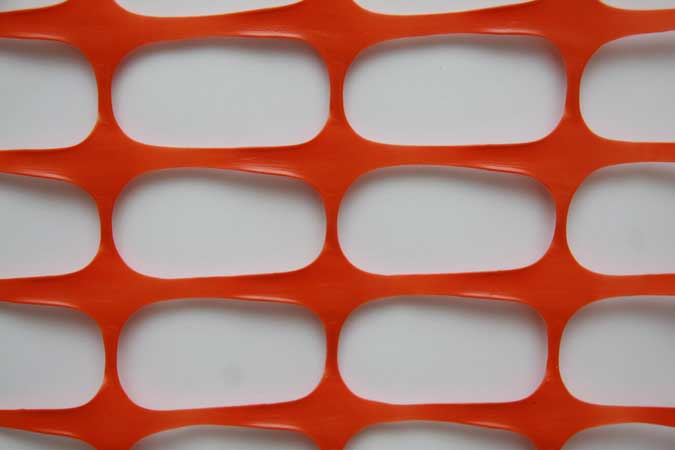

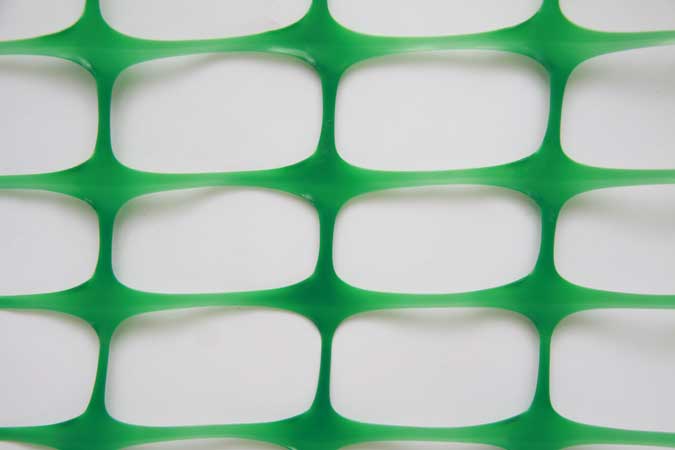

Warning Fence

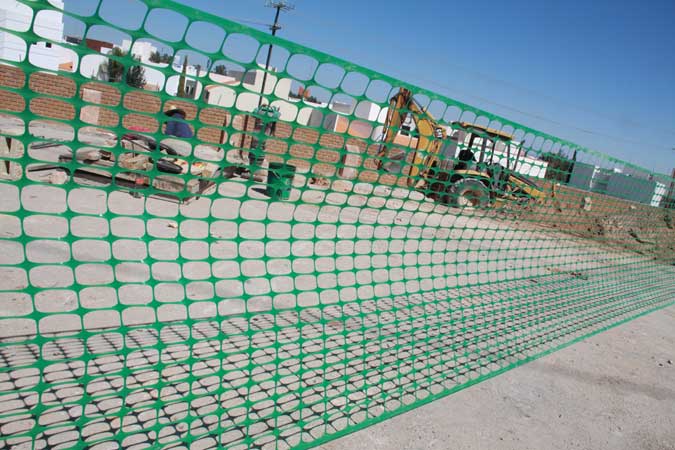

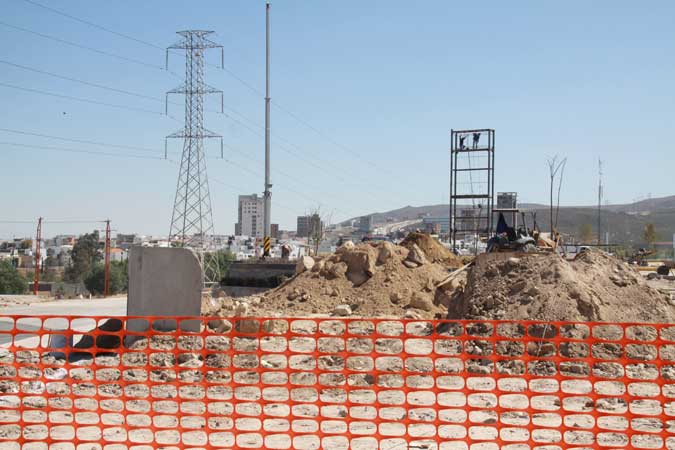

The multipurpose fence is designed for
protection around construction sites
and manholes or for use as a property
delineator.
Colors: Orange, green and black.
| Sizes | Weight (LBS) |
| 4´x 50´ 4´x 100´ 4´x 50´ 4´x 100´ 4´x 100´ |
6 12 7 14 13 |
Multiple and trustable fence uses.
Specifications
| Property | Unit | Value | Range | |
| Standard height | cm (ft) | 122 (4.0) | ||
| Standard lengths | m (ft) | 30.5 (100) | 15.2 (50) | Standard |
| Weight per roll | kg (lb) | 4.54 (10) | 2.27 (5) | Standard |
| Tensile strenght (MD machine direction) |
kgf (lbf) | 5 (11.0) | Min. | |
| Tensile strenght (TD transversal direction) |
kgf (lbf) | 4 (8.8) | Min. | |
| Mesh opening | mm (in) | 98.0 X 48 (3.9 X 1.9) | ± 5% | |
(*) Units in English System
NA:Not Apply
Specifications
| Property | Unit | Value | Range | |
| Standard height | cm (ft) | 122 (4.0) | ± 2% | |
| Standard lengths | m (ft) | 30.5 (100) | 15.2 (50) | Standard |
| Weight per roll | kg (lb) | 5.45 (12) | 2.72 (6) | Standard |
| Tensile strenght (MD machine direction) |
kgf (lbf) | 8.5 (18.8) | Min. | |
| Tensile strenght (TD transversal direction) |
kgf (lbf) | 5.7 (12.5) | Min. | |
| Mesh opening | mm (in) | 98 X 48 (3.9 X 1.9) | ± 5% | |
(*) Units in English System
NA:Not Apply
Specifications
| Property | Unit | Value | Range | |
| Type | NA | 16 lb | NA | |
| Standard height | cm (ft) | 122 (4.0) | ||
| Standard lengths | m (ft) | 30.5 (100) | 15.2 (50) | Standard |
| Weight per roll | kg (lb) | 7.26 (16) | 3.64 (8) | Standard |
| Tensile strenght (MD machine direction) |
kgf (lbf) | 10.3 (22.7) | Min. | |
| Tensile strenght (TD transversal direction) |
kgf (lbf) | 6.85 (15.1) | Min. | |
| Mesh opening | mm (in) | 96 X 45 (3.94 X 1.77) | ± 5% | |
(*) Units in English System
NA:Not Apply
